Home lifts

A lift that belongs inside a home

No machine room. Single phase on the standard configuration. Rescue is standard, not an upgrade sold later. From Rs 8,20,000, exact figure after survey. Price lives on its own page so this one can stay about the building.

Home lift price Book a free survey

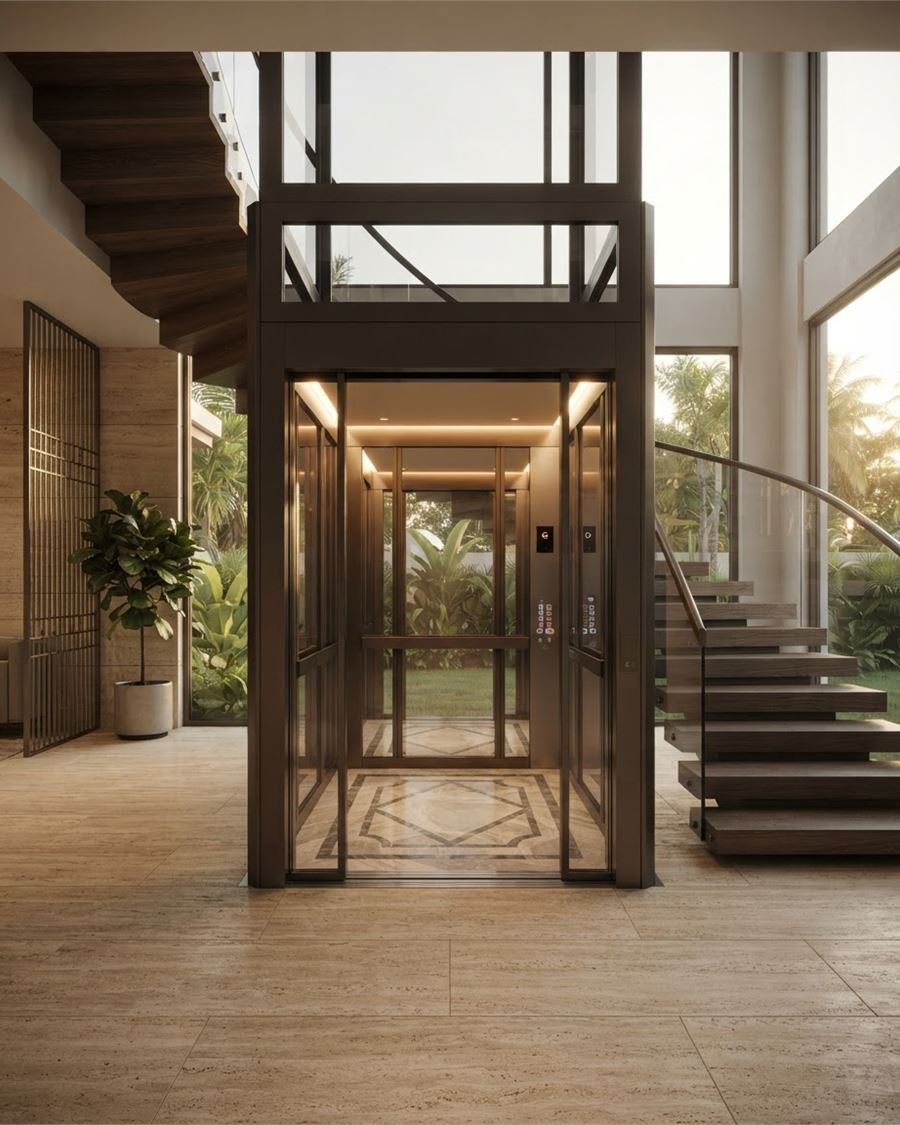

A bronze and glass home lift standing beside a staircase in a villa foyer

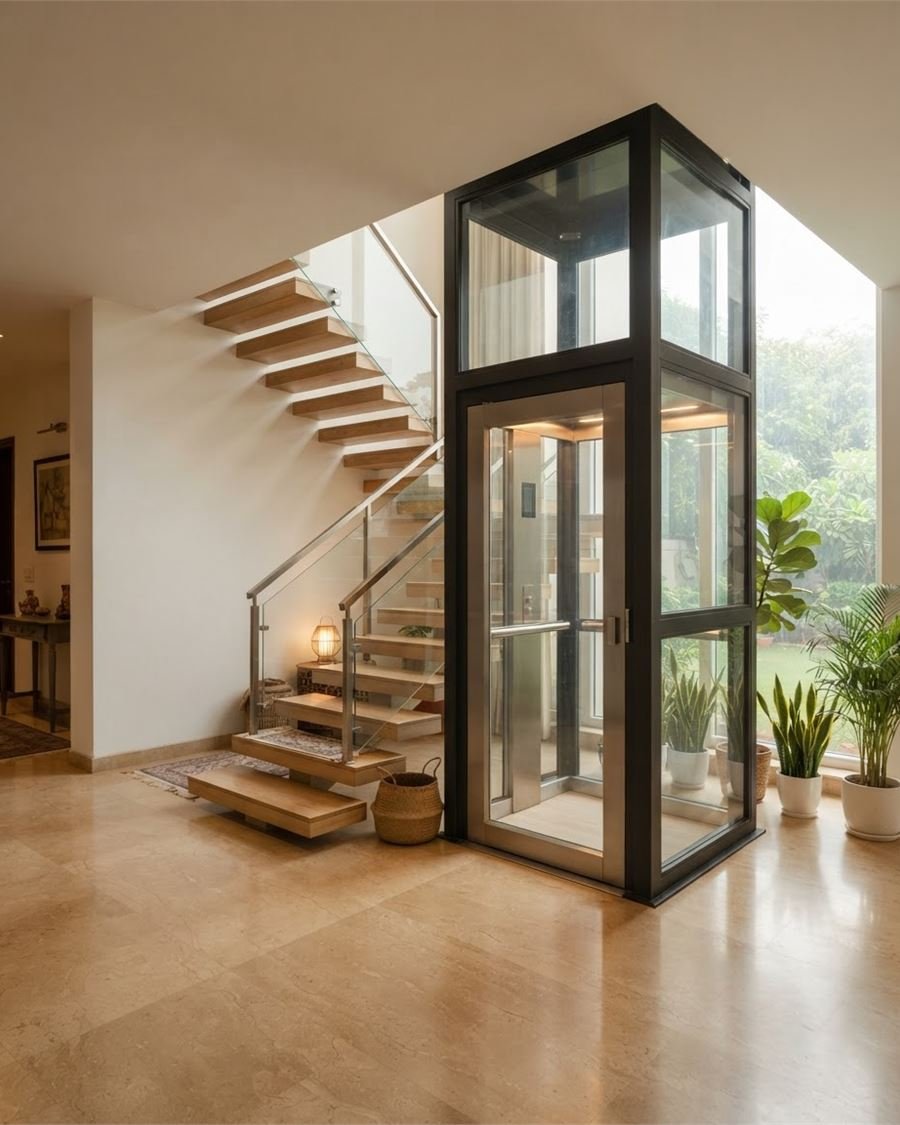

Glass home lift in a double height living room

A category, not a marketing word

Can your building take a lift?

A home lift is built around a small passenger rating. The planning benchmark for a residential lift is about 250 kg, or roughly four people. A six or eight person machine sold to you as a home lift is a different product altogether, with a different shaft and a different price, and we price that passenger machine separately. This page is about the house.

Most home lifts go into houses that are already finished, and the deciding factor is rarely the budget. It is how much headroom sits above the shaft route, and how deep a pit the ground floor can take.

Three routes, depending on how much of the house is already built

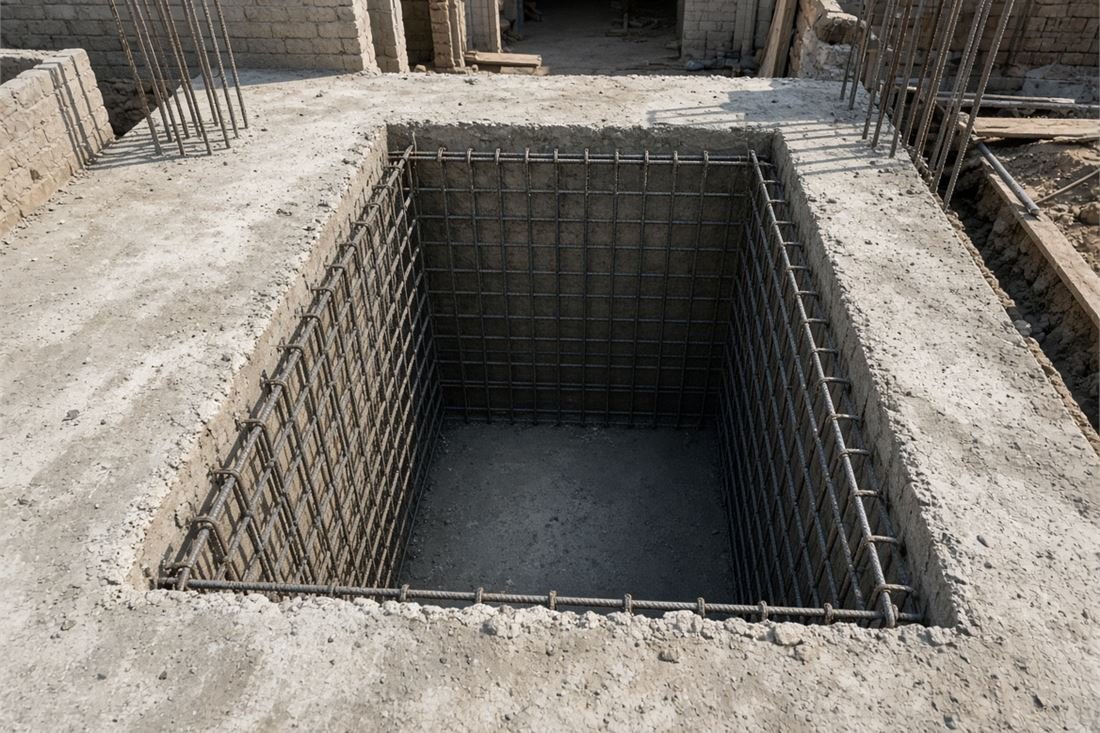

Shaft marked in a house under construction

Still building

Easiest and cheapest. We mark the shaft on your drawings before the slab is cast.

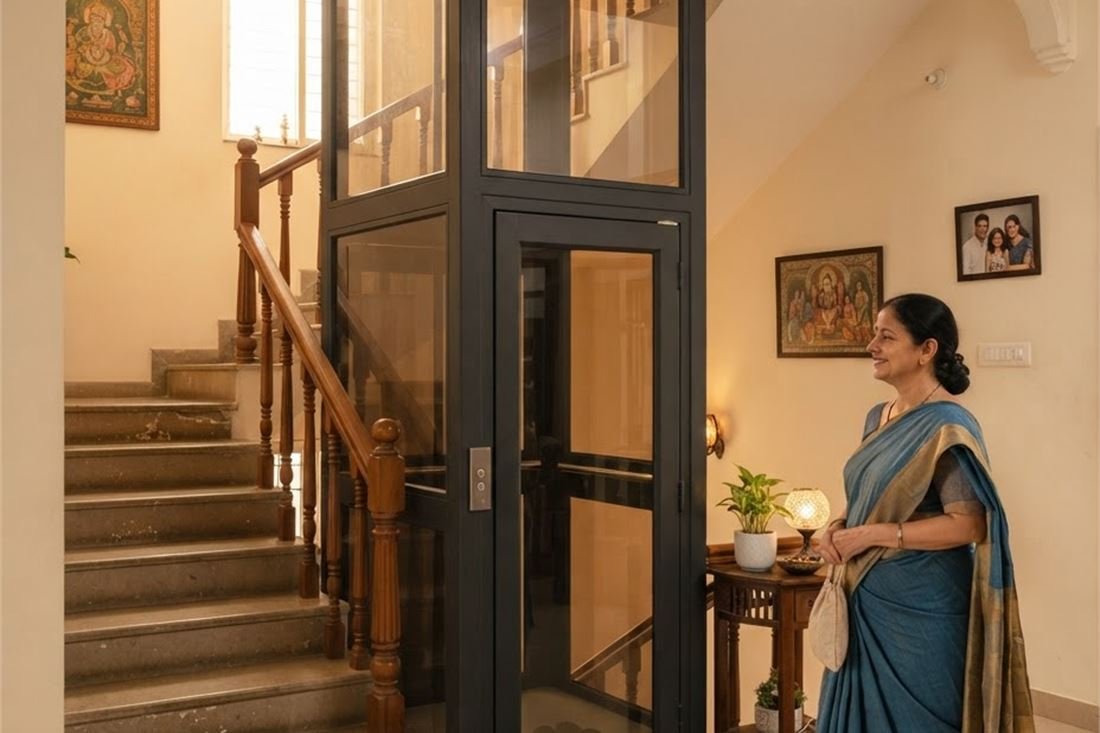

Already built

A stairwell void or a spare corner takes a self-supporting metal shaft with minimal civil work.

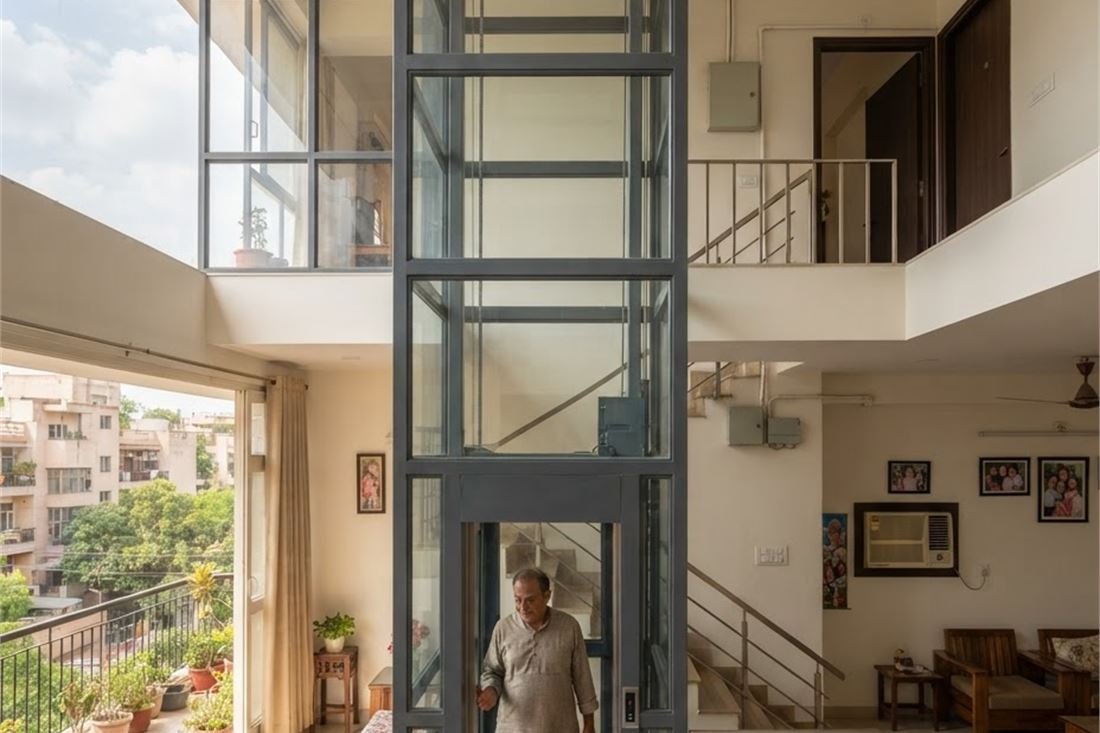

No space inside

An external structure is erected against the outside wall and lands at every floor.

Drive types

The three technologies

Most houses suit one of three drive types. The survey picks the one that fits the pit, the headroom and the wall you actually have, because we will not choose a technology from a photograph. Where two of them work, we price both and let you decide on the total.

Hydraulic

A direct or split piston. Best where travel is low and headroom is tight. A 350 mm pit or a pitless arrangement is possible on many finished houses. Oil is part of the machine.

Pitless traction

A traction drive arranged so the house does not need a conventional pit. Quieter and cheaper to run than hydraulic, and it wants a little more headroom in return.

Wall mounted hydraulic

The hydraulic package mounts to a load-bearing wall, so the civil footprint stays smaller than a full shaft pour. Offered only where the wall and the loads allow it.

Specification

What the brochure machine is

Planning data for the 250 kg class, confirmed against your site at survey.

Max load	250 kg / 4 person
Usage	150 starts / day
Maximum rise	15 metres
Car speed	0.35 m/s
Power supply	1 phase, 220 V on the standard configuration
Motor	1.2 kW
Control	Simplex auto
Entrance	Front or rear
Pit / overhead	400 / 2900 mm

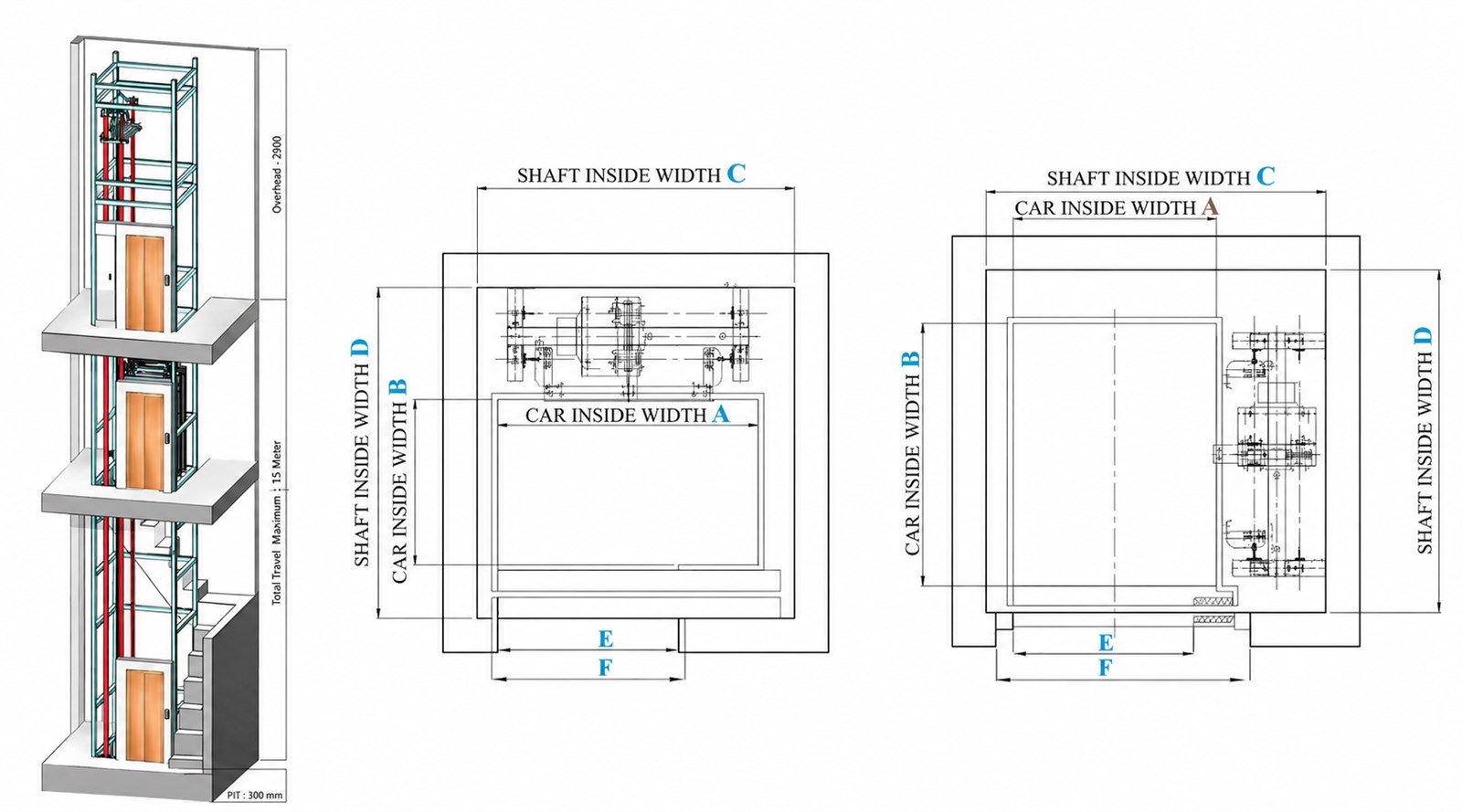

Home lift general arrangement: shaft cutaway showing the overhead, the pit and 15 m maximum travel, with hoistway plans marking car inside width A, car inside depth B, shaft inside width C, shaft inside depth D and entrance dimensions E and F — General arrangement and hoistway plans. A and B are the car, C and D the shaft, and they carry the same meaning in the table below.

Hoistway sizes

What the shaft has to be

Capacity 4 person or 250 kg. Every configuration runs at 0.35 m/s. These are planning figures, confirmed against your site at survey.

All dimensions in mm
Door type	Car A	Car B	Well C	Well D	Clear entrance E	Pit	Overhead
Manual collapsible, side wall	900	1000	1450	1250	700	400	2900
Telescopic auto, side wall	900	1000	1500	1400	700	400	2900
Centre opening auto, side wall	1000	900	1600	1250	700	400	2900
Centre opening four panel, side wall	900	1000	1500	1500	800	400	2900
Manual collapsible, back wall	1000	900	1200	1550	700	400	2900
Telescopic auto, back wall	1000	900	1250	1750	700	400	2900
Centre opening auto, back wall	1000	900	1500	1650	700	400	2900
Centre opening four panel, back wall	1000	900	1250	1750	800	400	2900

General planning data. The survey confirms the figure for your house before anything is ordered.

Questions

Before you ask us

How much does a home lift cost?

A Laurel home lift starts at Rs 8,20,000. Exact costing follows a free site survey because the building decides the drive type.

Does it need three-phase power?

Not on the standard configuration. Single phase 220 V is the published supply. The survey confirms it for your house.

Is rescue included?

Yes. The automatic rescue device is standard, not an upgrade sold later.

Where to go from here

Price

What a home lift costs

The Rs 8,20,000 figure broken into what it covers, what it excludes and the three things that move it.

See the price

Cabin

Choose the cabin

Twelve finished cabins, the ceiling range, the flooring range and the panels. All of it inside the quoted price.

See the range

Compare

Home lift or hydraulic

Same drive family, different machines. This page names the difference rather than leaving you to guess.

Compare the two

The other machines Home lifts Passenger lifts Hospital lifts Goods lifts Structure lifts Hydraulic lifts Car lifts Dumbwaiters Escalators Modernisation Cabin designs

Ask about this lift

Tell us the building. We will tell you the number.

On a home lift the house picks the machine, not the budget. Send the pit depth, the headroom above the shaft route and the number of floors, and we will tell you which of the three drive types your house can take.

A free site survey. The drawings are yours whether or not you order.
An itemised quotation, with the licence and the designer cabin already inside it.
A written completion date, and interest paid by us if we miss it.

Would rather talk? Call +91 93159 68348 or message us on WhatsApp.
